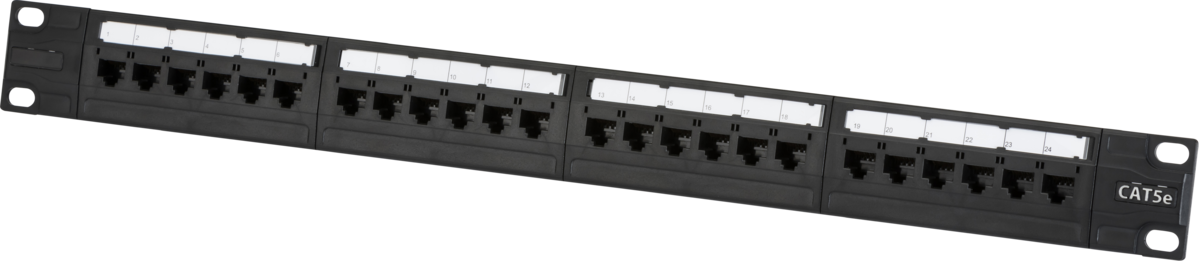

19 inch 1U UTP CAT5e 24-port Patch Panel

Premium grade modular type patch panel.

Features

- 19 inch rackmount
- 1U
- 24-port
- UTP CAT5e
- 110 and Universal IDC
- RJ45 ports (Phosphor Bronze with 50 micron gold plating)
- Compliant to ANSI TIA EIA-568-C.2, ISO IEC 11801, ANSI TIA EIA-569-B, ISO IEC 60603-7, ANSI TIA EIA-310-D, PoE+

Specification

- Insulation Resistance: greater than 500MΩ
- Dielectric Withstand Voltage: 1000V DC
- Contact Resistance: less than 20 mΩ
- Current Rating: 1.5A @ 68℉
- Plug insertion Life: more than 750 times plug in
- Contact Force 99.2g (3.5oz) FCC Plug
- Plug Retention Force: 30lb (133n, 13.3Kg)
- 110/Universal IDC Insertion Force: 4.5Kg minimum
- 110/Universal IDC Retention Force: 0.5Kg minimum
- Temperature Test: -40 to 150℉ (-40 to 66℃)
